Cabo de Rede CAT6A GigaSPEED X10D® 3091B

Código: 760147025 Marca:
6x de R$ 233,33
R$ 1.600,00 R$ 1.399,99
ou R$ 1.329,99 via Boleto Bancário
Comprar Estoque: Disponível
    • 1x de R$ 1.399,99 sem juros
    • 2x de R$ 699,99 sem juros
    • 3x de R$ 466,66 sem juros
    • 4x de R$ 349,99 sem juros
    • 5x de R$ 279,99 sem juros
    • 6x de R$ 233,33 sem juros
    • 7x de R$ 224,62
    • 8x de R$ 199,35
    • 9x de R$ 179,72
    • 10x de R$ 164,03
    • 11x de R$ 151,22
    • 12x de R$ 140,56
  • R$ 1.329,99 Boleto Bancário
* Este prazo de entrega está considerando a disponibilidade do produto + prazo de entrega.

Cabo de Rede CAT6A GigaSPEED X10D® 3091B

760147025 | 3091B SLT C6A 4/23 U/UTP W1000 (ANATEL)

GigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable,

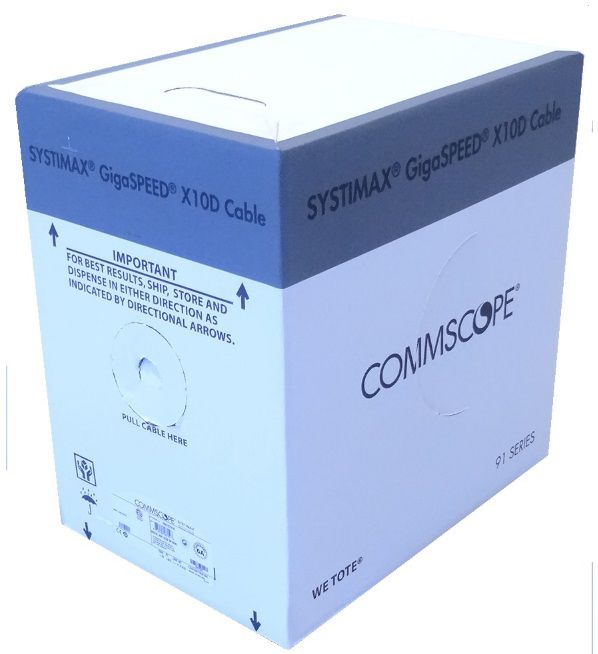

slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box



Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America
Portfolio SYSTIMAX®
Product Type Twisted pair cable
Product Brand GigaSPEED X10D®

General Specifications

Product Number 3091B
ANSI/TIA Category 6A
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Slate
Pairs, quantity 4
Separator Type Isolator
Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

Dimensions

Cable Length 304.8 m | 1000 ft
Diameter Over Conductor 0.864 mm | 0.034 in
Diameter Over Jacket, nominal 7.239 mm | 0.285 in
Jacket Thickness 1.295 mm | 0.051 in
Conductor Gauge, singles 23 AWG

Cross Section Drawing

Click on image to enlarge.

Electrical Specifications

dc Resistance Unbalance, maximum 4 %
dc Resistance, maximum 7.61 ohms/100 m | 2.32 ohms/100 ft
Mutual Capacitance at Frequency 6.0 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 66 %
Operating Frequency, maximum 550 MHz
Operating Voltage, maximum 80 V
Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Segregation Class c

Material Specifications

Conductor Material Bare copper
Insulation Material Polyolefin
Jacket Material Low Smoke Zero Halogen (LSZH)
Separator Material Polyolefin
Separator 2 Material Polyolefin

Mechanical Specifications

Pulling Tension, maximum 11.34 kg | 25 lb

Environmental Specifications

Installation temperature 0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Acid Gas Test Method IEC 60754-2
EN50575 CPR Cable EuroClass Fire Performance Dca
EN50575 CPR Cable EuroClass Smoke Rating s2
EN50575 CPR Cable EuroClass Droplets Rating d2
EN50575 CPR Cable EuroClass Acidity Rating a1
Environmental Space Low Smoke Zero Halogen (LSZH)
Flame Test Method IEC 60332-3-22
Smoke Test Method IEC 61034-2

Packaging and Weights

Cable weight 54.913 kg/km | 36.9 lb/kft
Packaging Type WE TOTE® box

Regulatory Compliance/Certifications

Agency Classification
CENELEC  EN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015  Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS  Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
